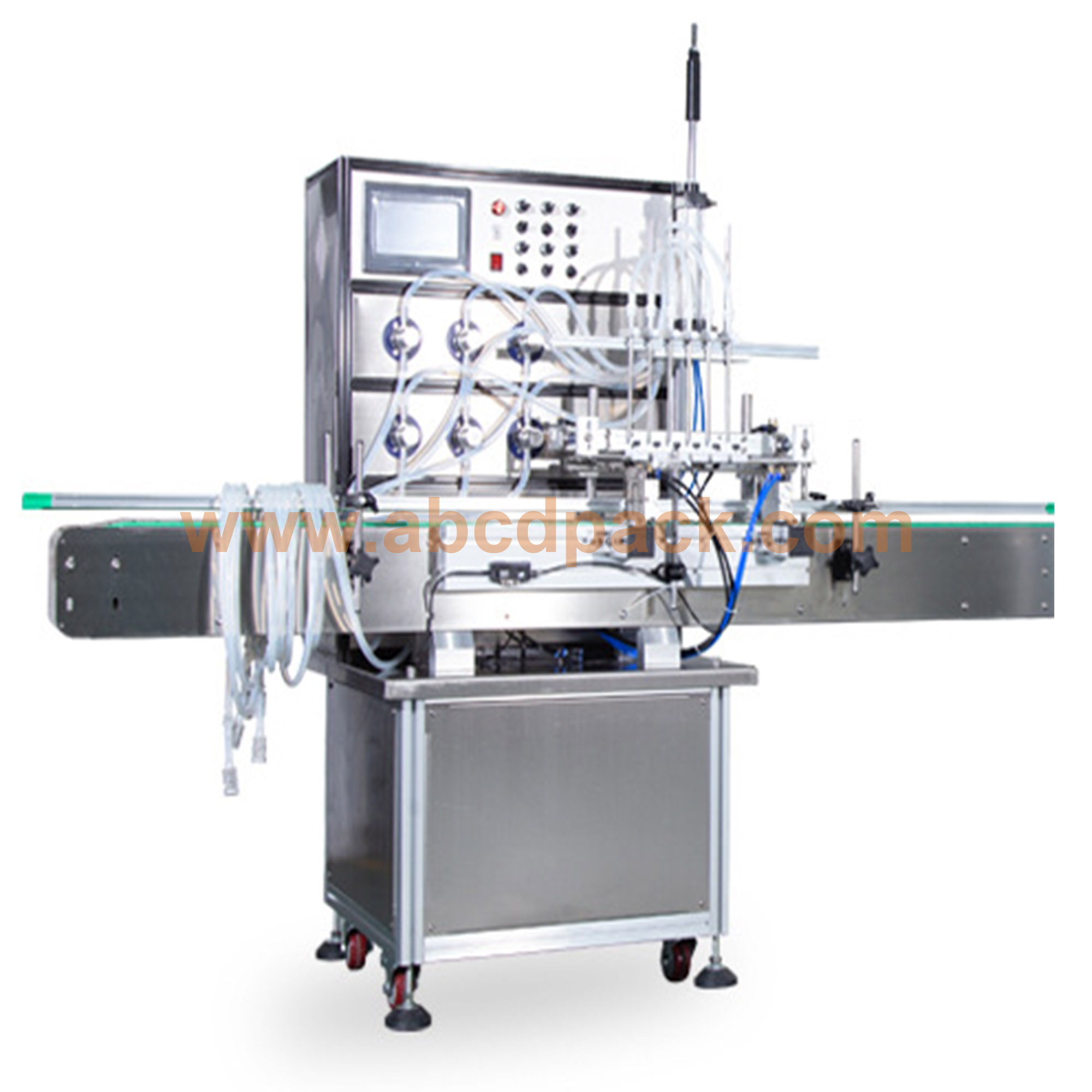

- Product name：Computer gear pump filling machine
- Model No：AXGZ-CL
- Features：
Product Description 1.Different types and materials of pumps make various low viscosity non-granular liquids. 2.non-granular liquids such as: Various pharmaceuticals: medicine oil, medicated wine, alcohol, eye drops, syrup Chemicals: solvent, acetone, care liquid, detergent Oils: Cooking oil, essential oil Cosmetics: toner, makeup remover, spray Food: milk, soy milk Beverages: fruit juice, fruit wine Condiments: soy sauce, vinegar, sesame oil 3.Each filling nozzle adjust separate 4.With no bottle no filling function
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
AXGZ-CL-2
AXGZ-CL-4
AXGZ-CL-6
AXGZ-CL-8
Max filling speed (bottles/min)
10~20
10~25
10~30
10~35
Power (KW)
0.8
1.0
1.2
1.4
Net weight (Kg)
100
120
140
160
Bottle diameter size
Φ20 ≤D≤Φ100mm
Bottle height size
30≤H≤220 mm
Filling accuracy
±1ml
Voltage
AC220V, 50/60HZ
Working pressure
0.6MP
Air consumption
700L one hour
Machine size(L*W*H)
2000*800*1500mm
Machine direction
From left to right
Operation process
Put products on conveyer—>Block bottles—> sensor count the empty bottles—> bottles come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles
