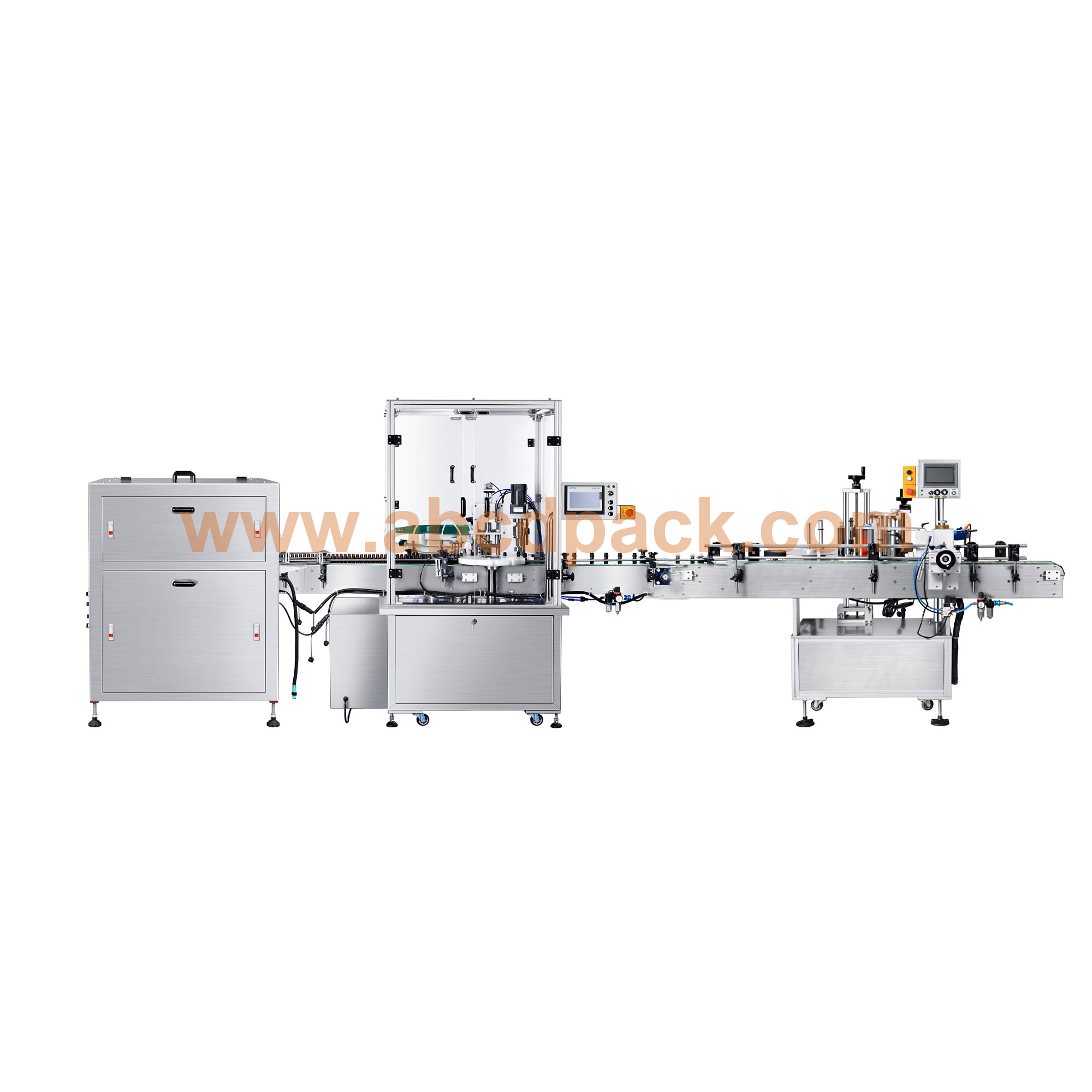

- Product name：Monoblock filling capping machine and round labeling machine
- Model No：ALBG-50+AXGZ-SX+AL-5130D
- Features：
Features： 1. Small bottle filler and capper is suitable for different types of PET bottle or glass bottle like eyedropper liquid, oral liquid, aseptic drops and so on. 2. Small bottle filler and capper filling volume is 5-60ml; Filling speed 1000-3000 per hour. 3. Small bottle filler and capper use sus316 and sus304 stainless steel that accord with the CE standard and GMP. There's no foam and leak when fill the liquid. 4. Our machine can be customized. 5. Bottle clip fixtures, to avoid dislocation filling.
Product specifications
|
Data sheets |
Details |
|
|
Name and model |
AXGZ-SX-1 AXGZ-SX-1DG |
AXGZ-SX-2 |
|
Max filling speed(pcs/hour) |
1000-1500 |
1000-3000 |
|
Power (KW) |
1.2 |
2.0 |
|
Applicable bottle diameter size |
Φ20 ≤D≤Φ50mm |
|
|
Applicable bottle height size |
30≤H≤100 mm |
|
|
Filling accuracy |
±1ml |
|
|
Bottle material |
Glass bottle, plastic bottle |
|
|
Filling material |
Eye drop, eliquid, cbg oil, cbd oil |
|
|
Voltage |
AC220V, single phase, 50/60HZ |
|
|
Working pressure |
0.6MP |
|
|
Air consumption |
700L one hour (speed 2000 bottles/hour) |
|
|
Net/gross weight |
400/600 Kgs |
|
|
Machine size(L*W*H) |
2000*1600*1900mm |
|
