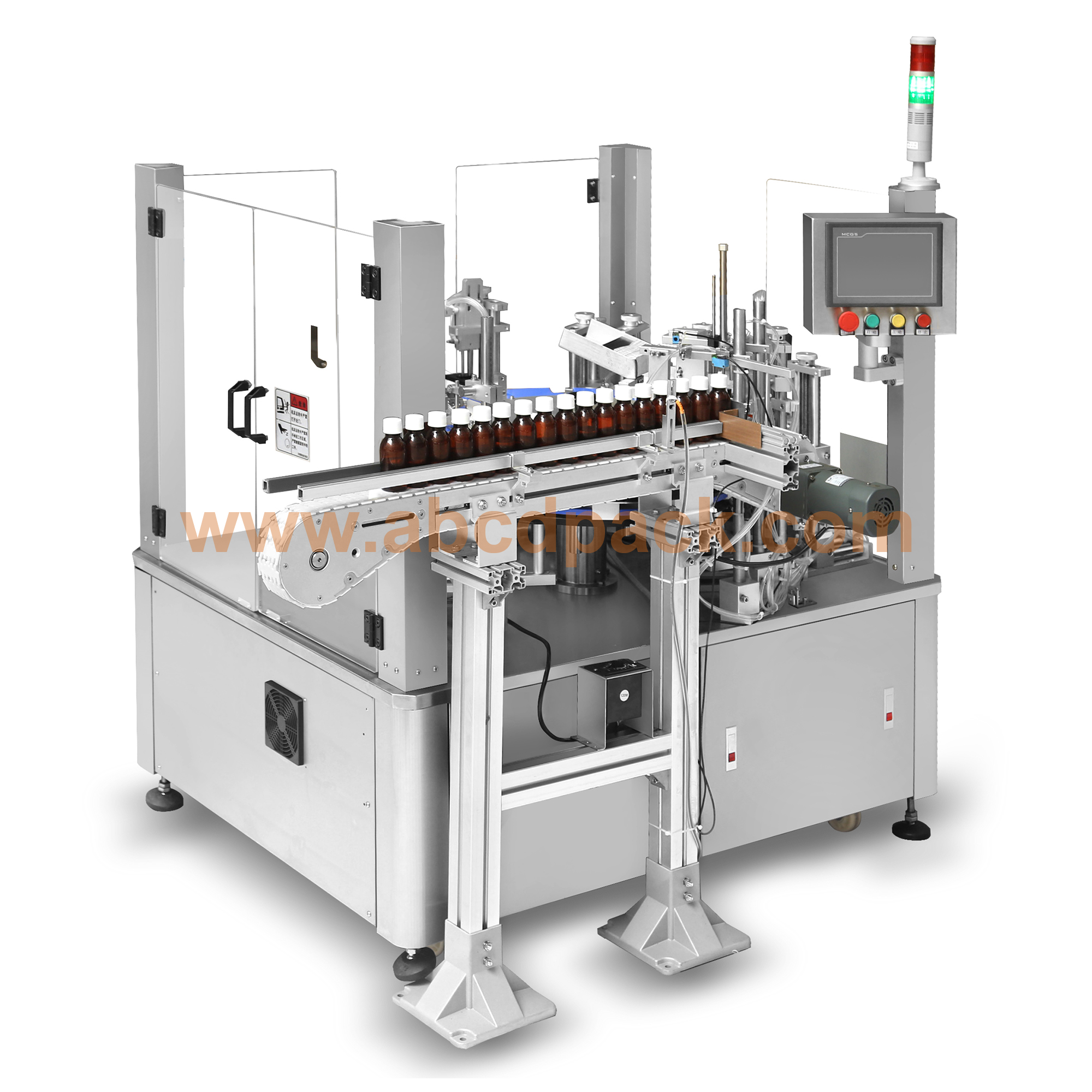

Product name:Vertical cartonning machine
Model No:AXGZ-ZH-LSLX
Features:
1. It is special design to pack small quantities multi size box. 2. With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mold. 3. SUS304 stainless steel case. 4. Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel, can easily set and change the packing parameters. Application: Cosmetic, round bottled medicine, food-stuff, etc. packing into square box. Option: Leaflet Inserting, Hot Glue, Hot Ribbon Date Code, Embossed date Code Packing process: Push box into star wheel-> Fold box lower small flap->Press both lower big flaps-> Flatten both big flaps-> Product fall into box-> Product fall into box-> Product fall into box-> Product fall into box-> Product push out.

Product specifications

Main parameters of the machine

Data sheets

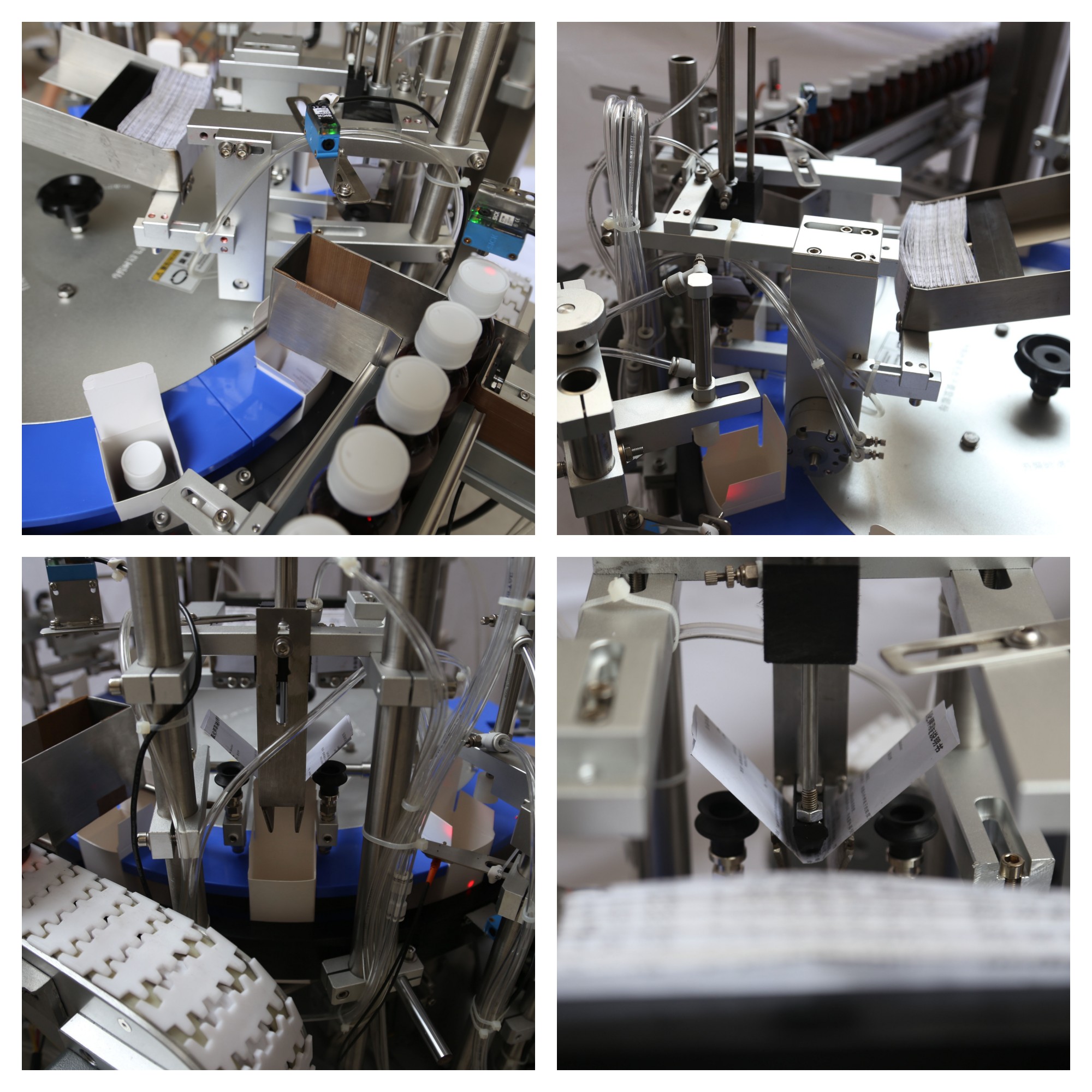

Details

Name and model

AXGZ-ZH-LSLX

Automatic Line Multifunctional Vertical Carton Erector Machine

Production speed

1200-3000 pcs/hour

Paper box largest size

200 x 80 x 80mm

Paper box smallest size

30≤H≤100mm

Paper quality of carton

250-350g/m³

Motor power

1/4HP 15:1

Machine noise

≤80dB

Voltage

AC220V, single phase, 50/60HZ

Working pressure

0.5-0.8 Mpa

Air consumption

150L/min

Net weight

250Kgs

Machine size(L*W*H)

1100*1500*1900mm
