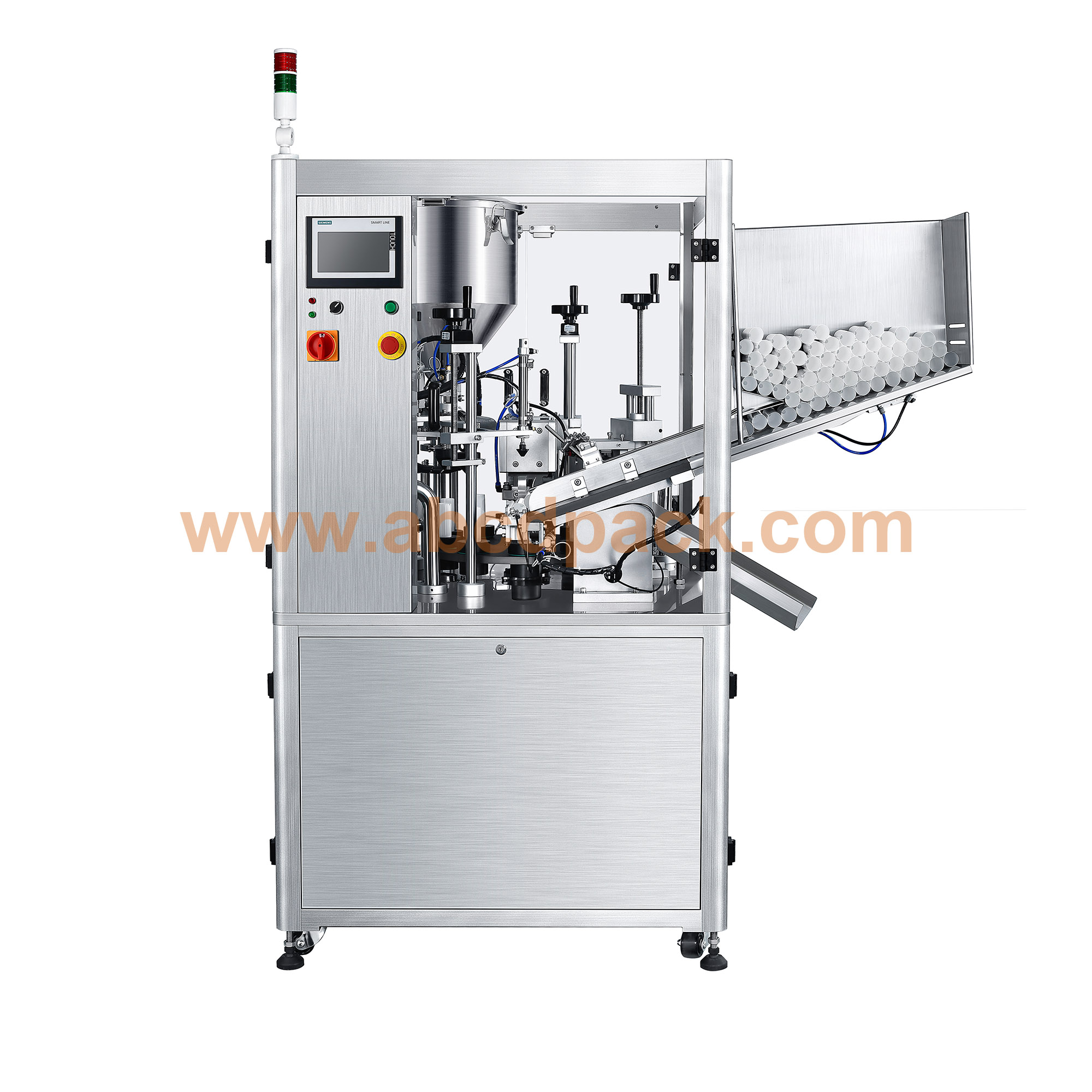

Tube filling and ultrasonic sealing machine

Product name：Tube filling and ultrasonic sealing machine

Model No：AD-50Z

Features：

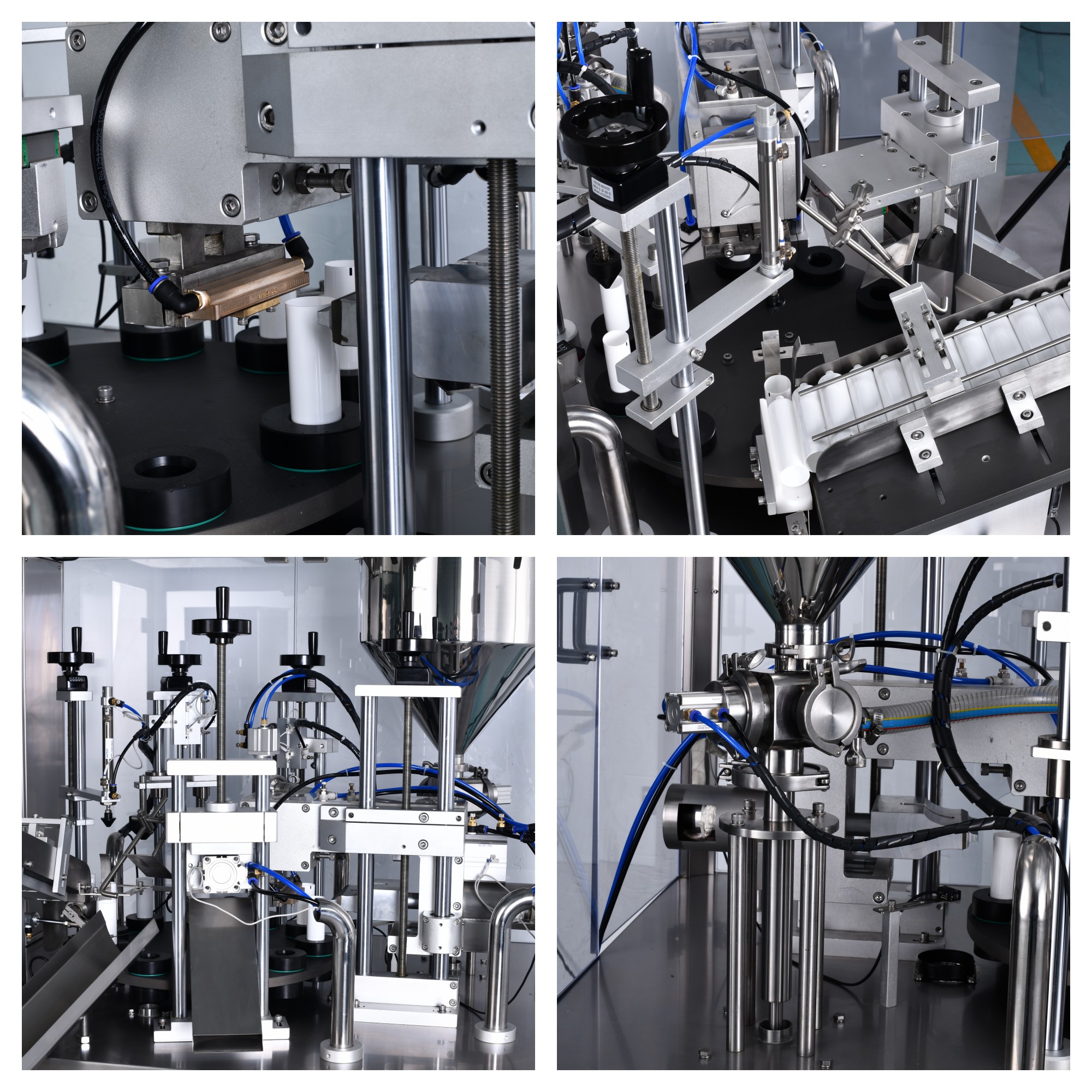

1.Tube feed automatically. 2.Suit for laminate tube, plastic composite tube sealing and aluminum plastic composite tube sealing. 3.The machine automatically completes a series of actions, such as tube collecting, tube mark orientation, filling, sealing and digits embossing, cutting and finished products. 4.It is equipped with safety device and overload protection. If there is no tube, it will not filling and sealing.

Product specifications

Main parameters of the machine

Data sheets	Details
Name and model	AD-50Z Automatic ultrasonic tube filling and sealing machine
Max filling speed	1000~1500pcs/hour
Applicable tube diameter size	Φ10≤D≤Φ50mm
Applicable bottle height size	50≤H≤200mm
Filling accuracy	±1ml
Voltage	AC220V, single phase, 50/60HZ
Power	2KW
Working pressure	0.6MP
Hopper volume	40L
Net weight	550kgs
Machine size	13009001550mm
