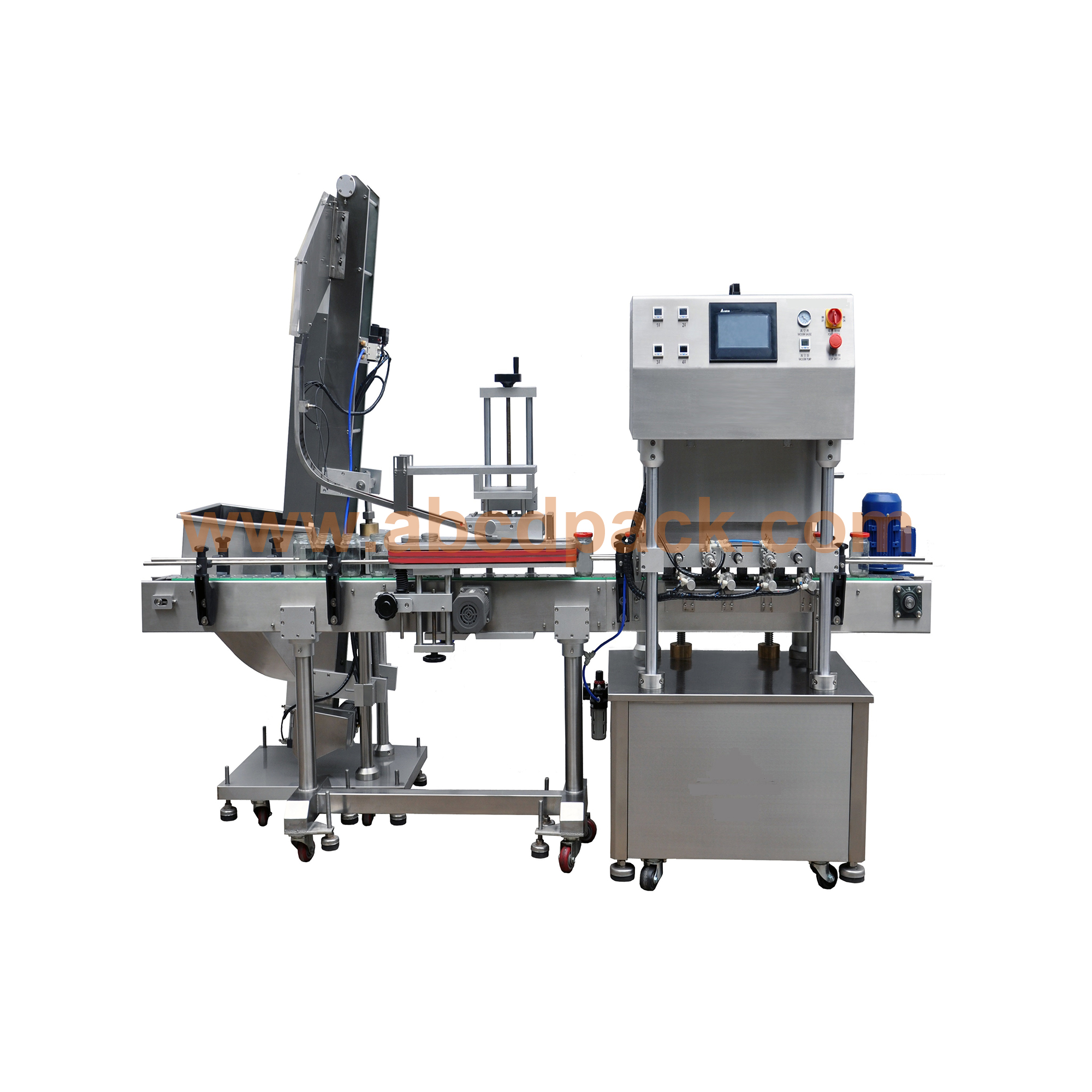

- Product name：Vacuum capping machine
- Model No：XGK-ZX-2
- Features：
Product Description 1.The vacuum capping machine is suitable for the sealing of the glass bottle of various shapes and specifications, the bottle and the cover are automatically delivered to the vacuum chamber position, then the vacuum chamber is formed, the vacuum is vacuumed, and the cover is tightened. 2.Applicable specifications: three screw cap, four screw cap.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
XGK-ZX-2 Vacuum capping machine
Torque
3-10Nm(adjustable)
Pressure inside bottle
≤67KPa
Cap closing speed
0~1000 bottle one hour
Cap diameter
Φ38≤D≤Φ70mm
Bottle diameter size
Φ45≤D≤Φ85mm
Bottle height size
30≤H≤180mm
Power
1000W
Voltage
AC220V, single phase, 50/60HZ
Working pressure
0.6Mpa
Machine size(L*W*H)
1600*800*1600mm
Net weight
250kgs
Basic construction
SUS304 stainless steel and anodized aluminum alloy, inside support machine frame is painted steel
