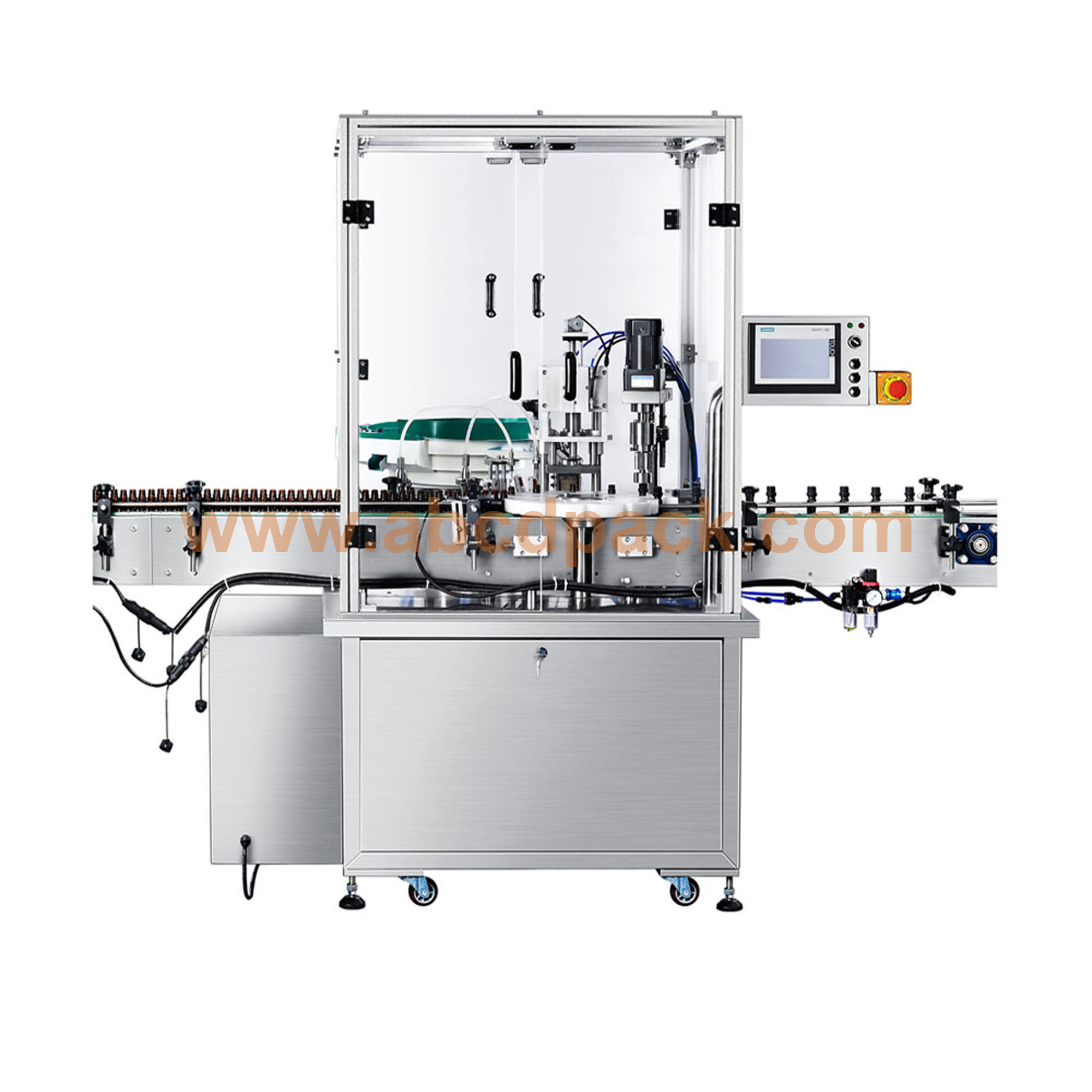

- Product name：Small capacity filling machine
- Model No： AXGZ-SX-1B-40-DG
- Features：
Product Description 1. Small bottle filler and capper is suitable for different types of PET bottle or glass bottle like eyedropper liquid, oral liquid, aseptic drops and so on. 2. Small bottle filler and capper filling volume is 5-60ml. 3. Small bottle filler and capper use sus316 and sus304 stainless steel that accord with the CE standard and GMP. There's no foam and leak when fill the liquid. 4. Our machine can be customized. 5. Bottle clip fixtures, to avoid dislocation filling.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
AXGZ-SX-1B-40-DG
Max filling speed
1000-1500pcs/hour
Power
1.2KW
Applicable bottle diameter size
Φ20≤D≤Φ50mm
Applicable bottle height size
30≤H≤100mm
Filling accuracy
±1ml
Bottle material
Glass bottle, plastic bottle
Filling material
Eye drop, e-liquid, cbg oil, cbd oil
Voltage
AC220V, single phase, 50/60HZ
Working pressure
0.6MP
Air consumption
700L one hour (speed 2000 bottles/hour)
Net/gross weight
400/600 Kgs
Machine size(L*W*H)
2000*1600*1900mm
