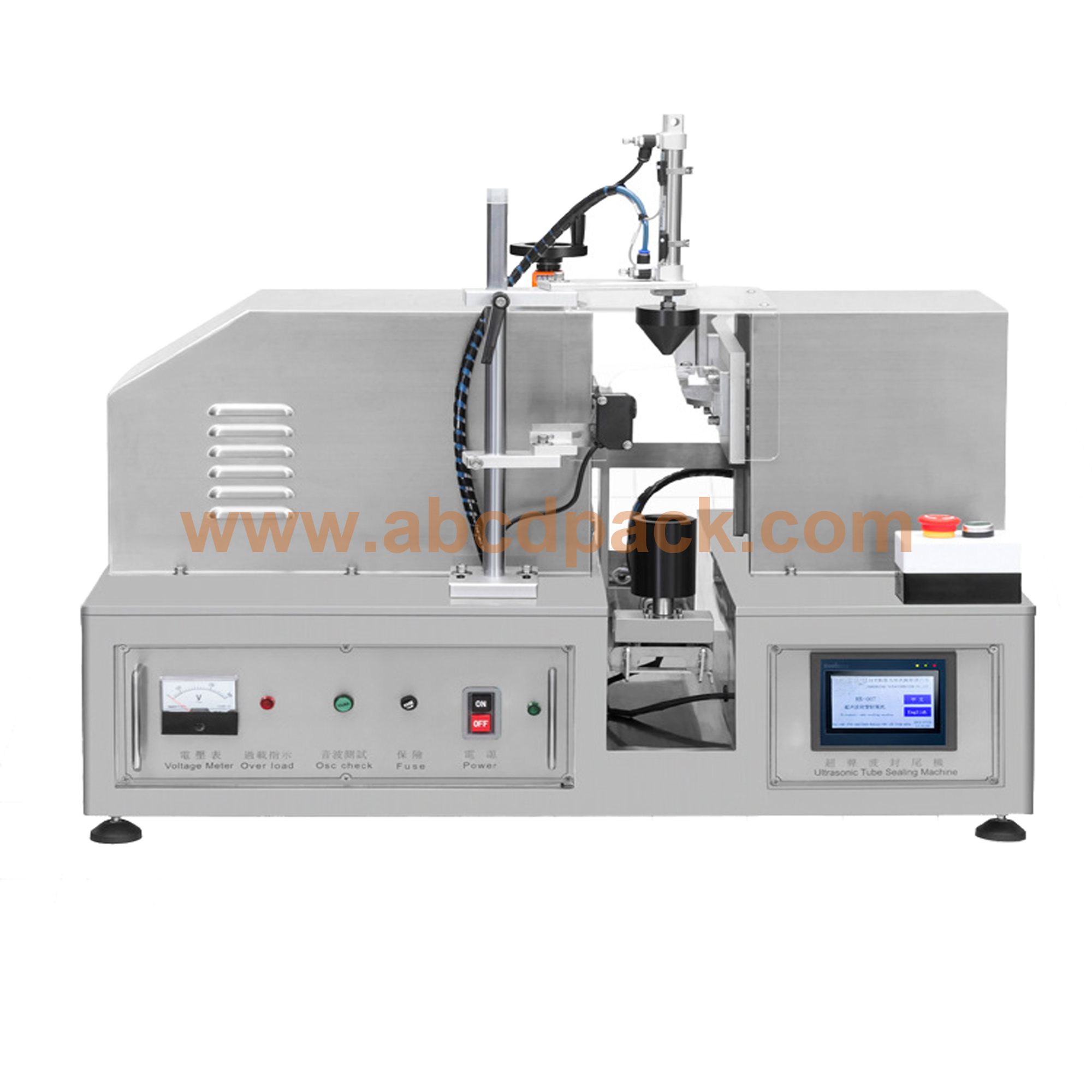

- Product name：Semi automatic ultrasonic tube sealing machine
- Model No：AD-20
- Features：
Product Description 1. Tube feed by hand. 2. Suit for laminate tube, plastic composite tube sealing and aluminum plastic composite tube sealing. 3. This machine uses the ultrasonic principle to weld and seal the tail of the tube. When welding, it does not add any adhesive, filler or solvent, and does not consume a lot of heat source. 4. It has the advantages of simple operation, fast welding speed, high welding strength and high production efficiency. 5. This machine is widely used in toothpaste, cosmetics, pharmaceuticals, food, industrial supplies and other types of tube sealing.
Product specifications
Main parameters of the machine
Data sheets

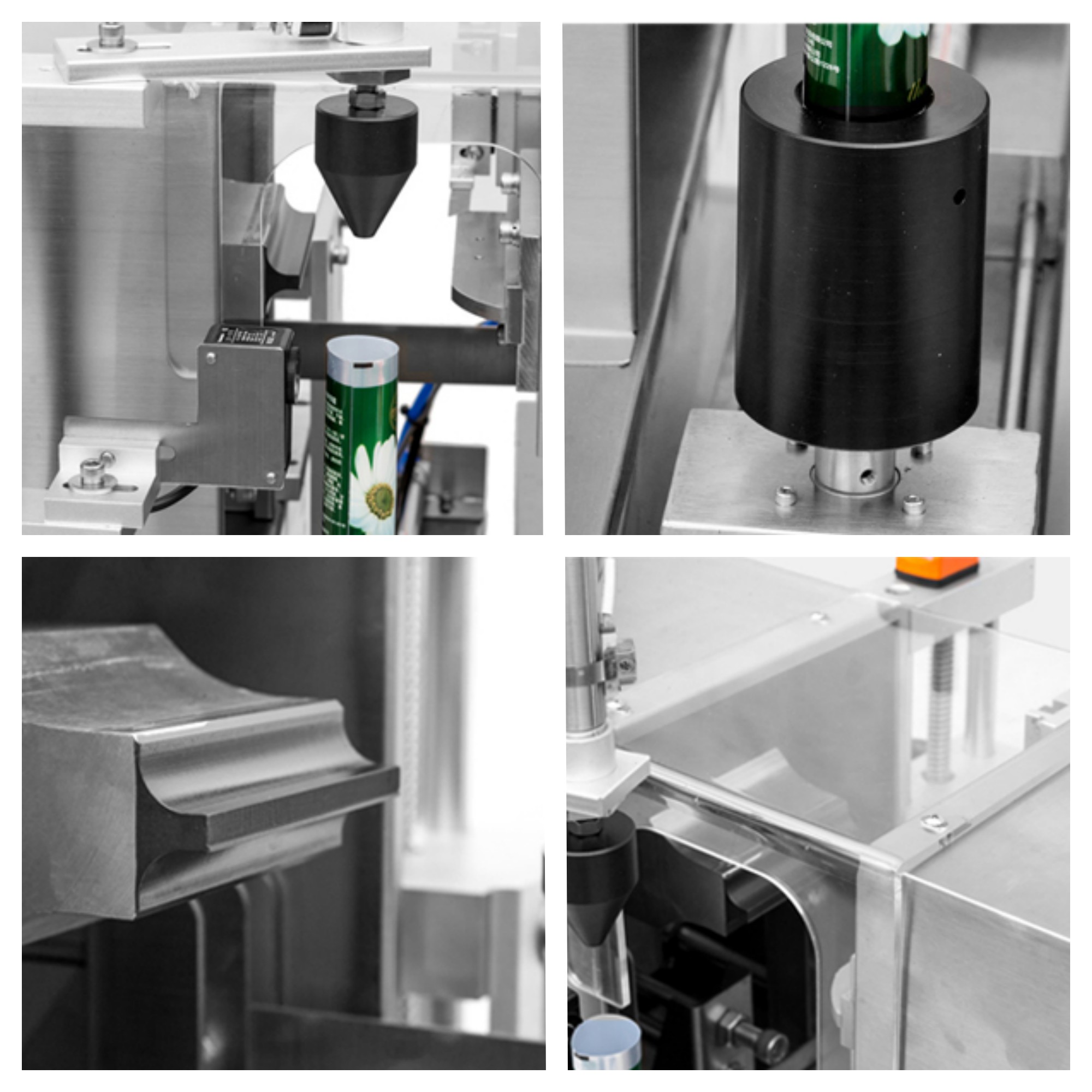

Details
Name and model
AD-20 semi automatic ultrasonic tube sealing machine
Production speed
600-1100pcs/hour
Applicable tube diameter size
Φ10≤D≤Φ50mm
Applicable bottle height size
10≤H≤250mm
Voltage
AC220V, single phase, 50/60HZ
Power
1800W
Oversize(L*W*H)
850x500x730mm
Working pressure
0.6MP
Frequency
20Khz
Net weight
85kgs
