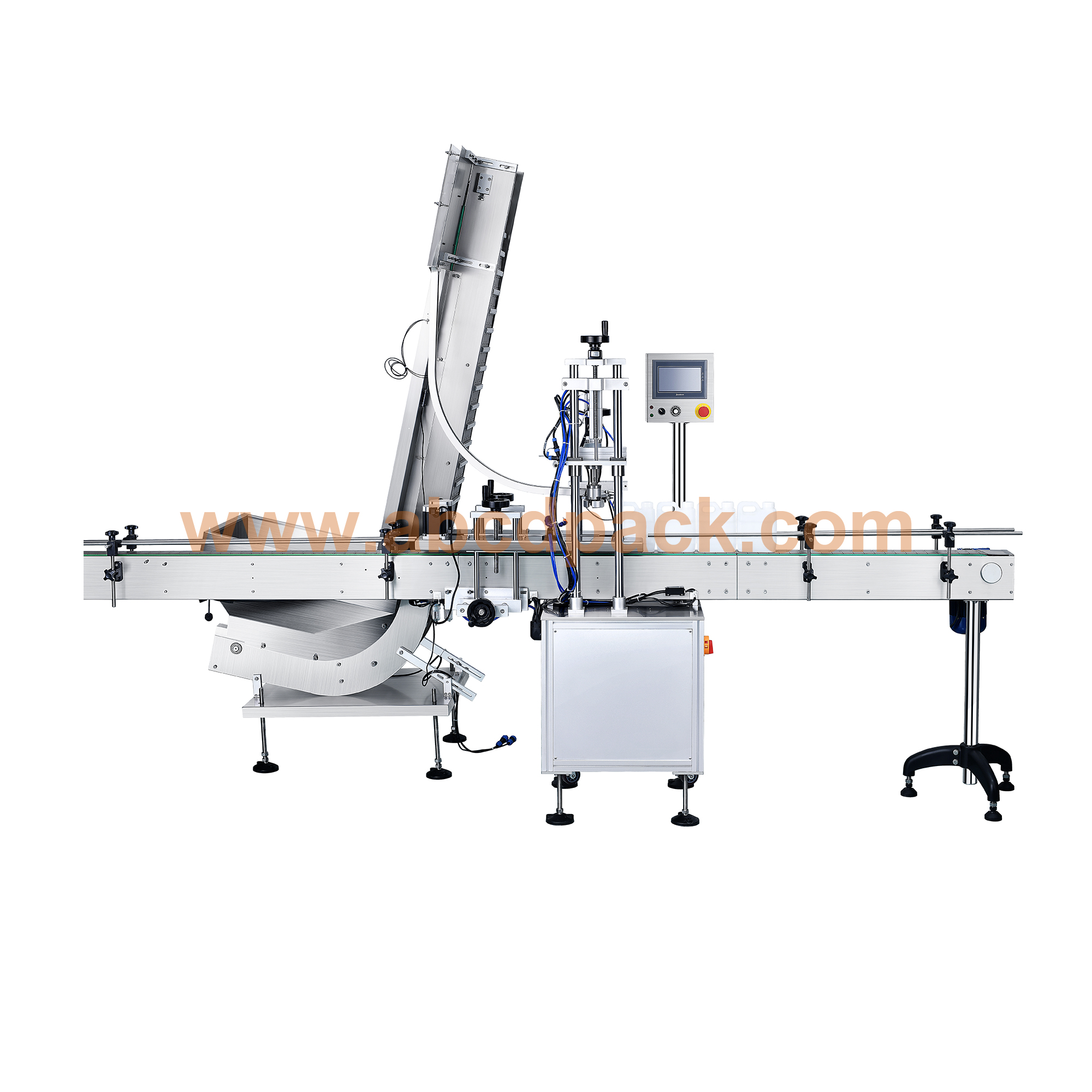

- Product name：linear gripper capping machine (cap put on bottle by hand)
- Model No：XGZ-60-ZX-1
- Features：
Product Description 1.This machine is suitable for most of containers and caps. 2.The machine is customized according to customer samples. 3.The machine can be equipped with an automatic cap sorting and feeding system.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
XGZ-60-ZX-1 linear gripper capping machine (cap put on bottle by hand)
Closing cap motor
Gear motor
Cap closing speed
0~25 cap one minute
Cap diameter
Φ20≤D≤Φ90mm
Bottle diameter size
Φ30≤D≤Φ100mm
Bottle height size
40≤H≤300mm
Power
500W
Voltage
AC220V, single phase, 50/60HZ
Working pressure
0.5~0.6Mpa
Machine size(L*W*H)
1500*700*1500mm
Net weight
150kgs
