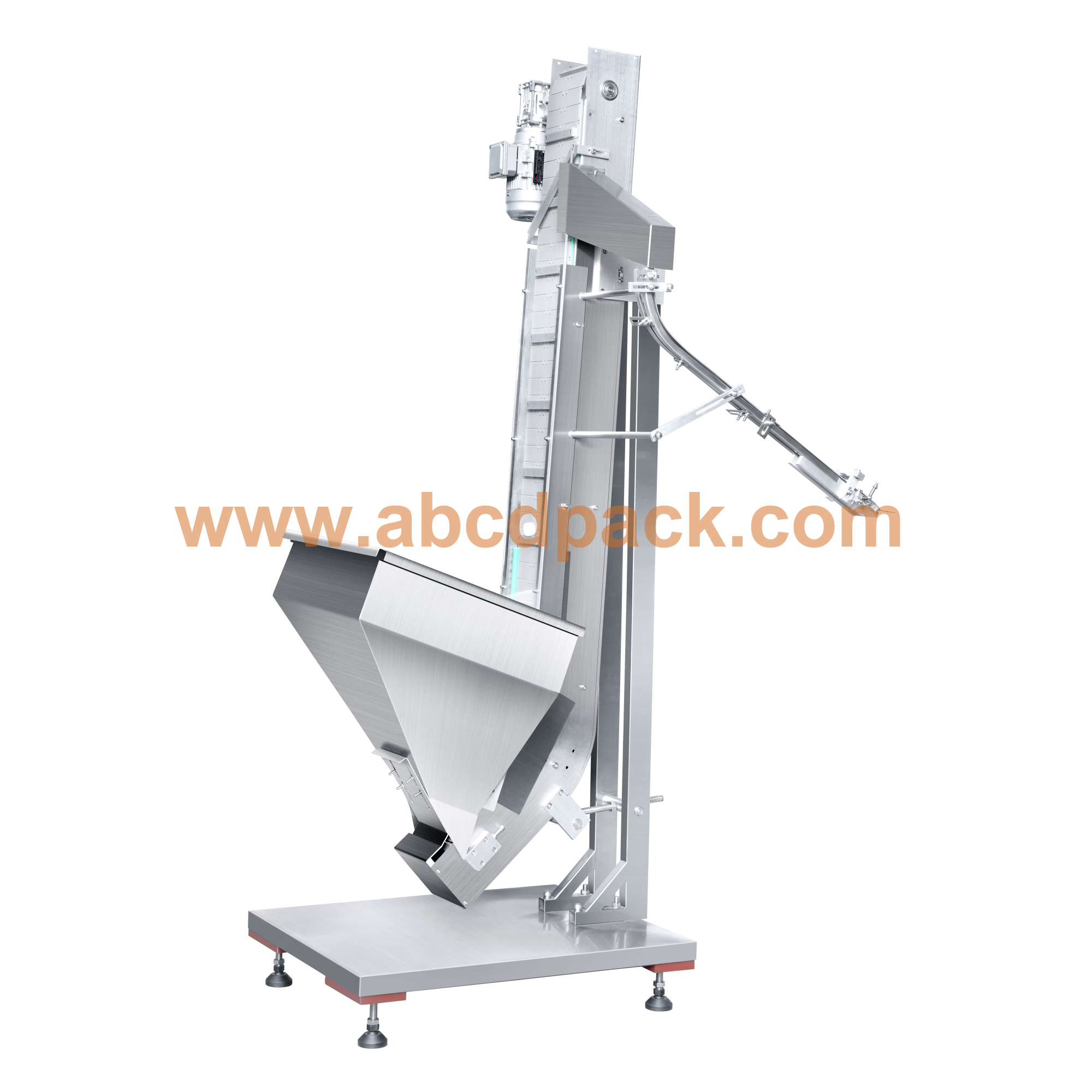

- Product name： Chain elevator cap sorting machine
- Model No：AXLG-1-XG
- Features：

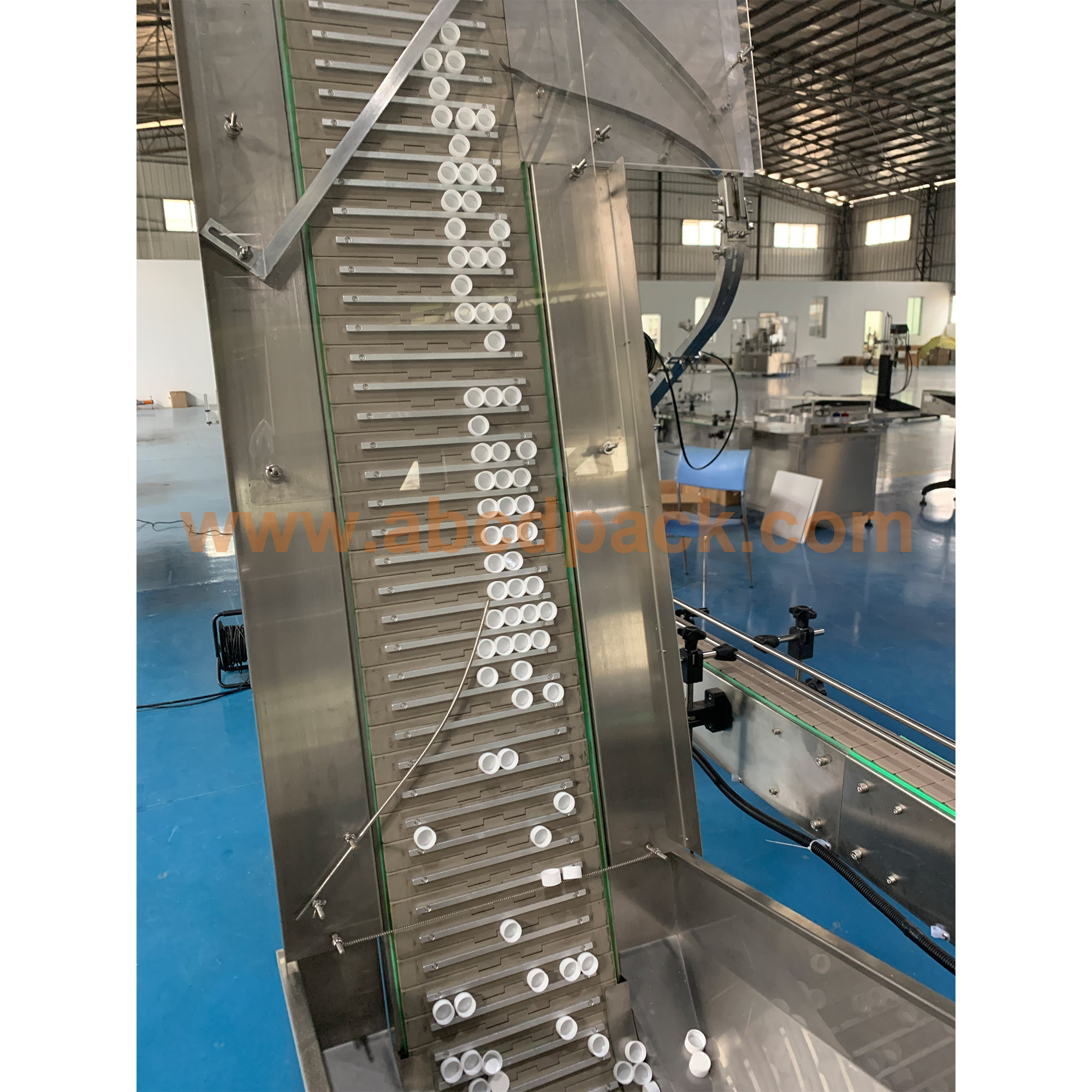

Product Description 1. Sort cap with bunker and elevator and chute, tow away the cap by the bottle neck. 2. Basic construction: SUS304 & anodized aluminum alloy, inside support machine frame is painted steel
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
AXLG-1-XG Chain elevator cap sorting machine
Motor
Gear motor
Applicable cap diameter
Φ20≤D≤Φ80mm
Applicable cap height size
15≤D≤40mm
Power
200W
Voltage
AC220V, single phase, 50/60HZ
Working pressure
Need compressed air
Machine size(L*W*H)
800*800*1800mm
Net weight
100kgs
