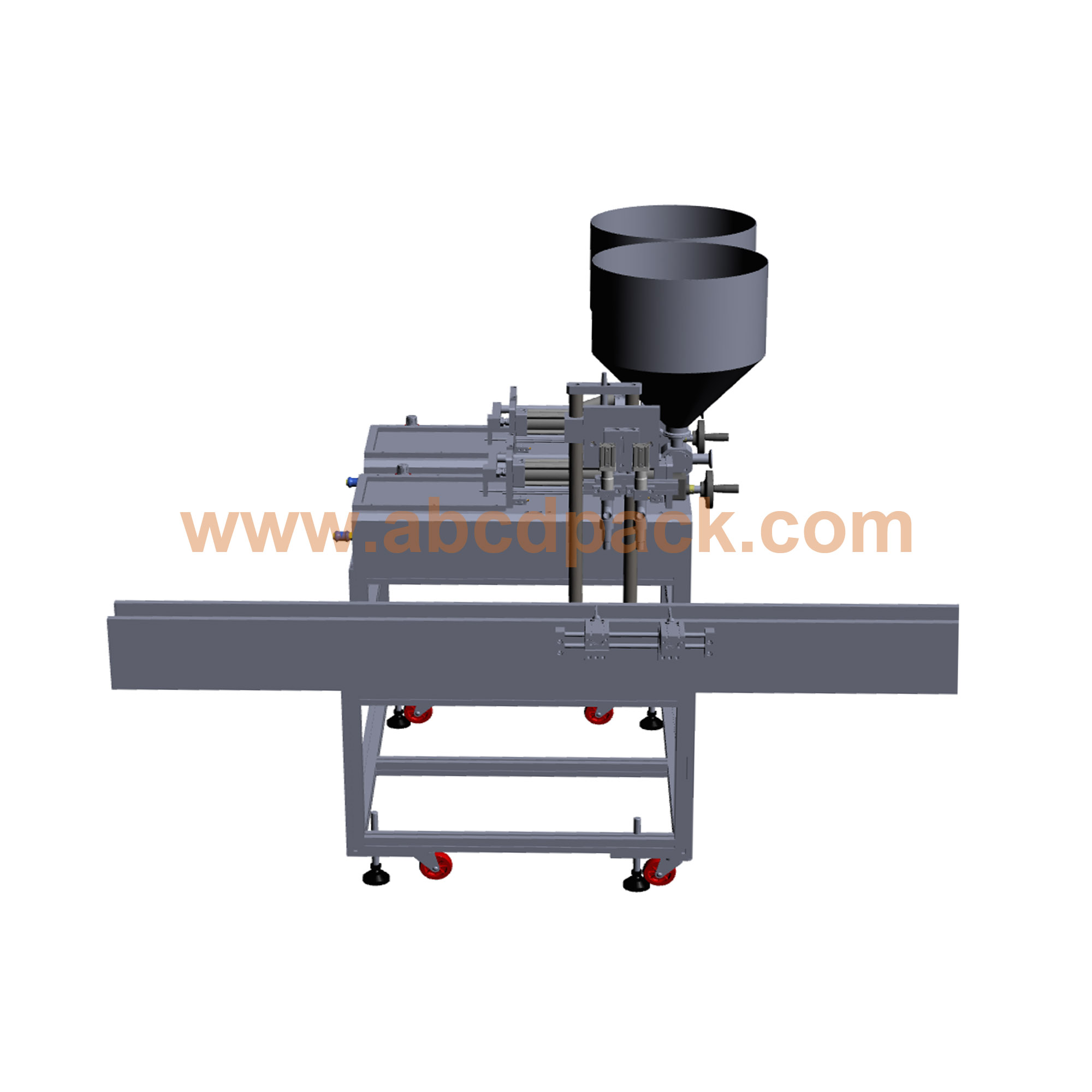

- Product name：Two nozzles simple filling machine
- Model No：AXGZ-SGJY-2
- Features：
Product specifications
Main parameters of the machine
|
Data sheets |
Details |
|
Name and model |
AXGZ-SGJY-2 Two nozzles simple filling machine |
|
Max filling speed |
Filling 200ml, 800~1000 pcs/hour, speed will be different when bottle shape and neck size and the filling material forming and other physical property |
|
Applicable bottle diameter size |
Φ20≤D≤Φ100mm |
|
Applicable bottle height size |
30≤H≤300mm |
|
Filling accuracy |
±1% |
|
Filling dose |
100~1000ml |
|
Voltage |
AC220V, single phase, 50/60HZ |
|
Power |
500W |
|
Working pressure |
0.6MP |
|
Air consumption |
1200L one hour |
|
Net/gross weight |
120/170 Kgs |
|
Machine size(L*W*H) |
2000*1200*1500mm |
|
Machine direction |
From left to right |
|
Operation process |
Put products on conveyer—>Block bottles—> sensor count the empty bottles—> 2 bottles come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles |
This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particulates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.
