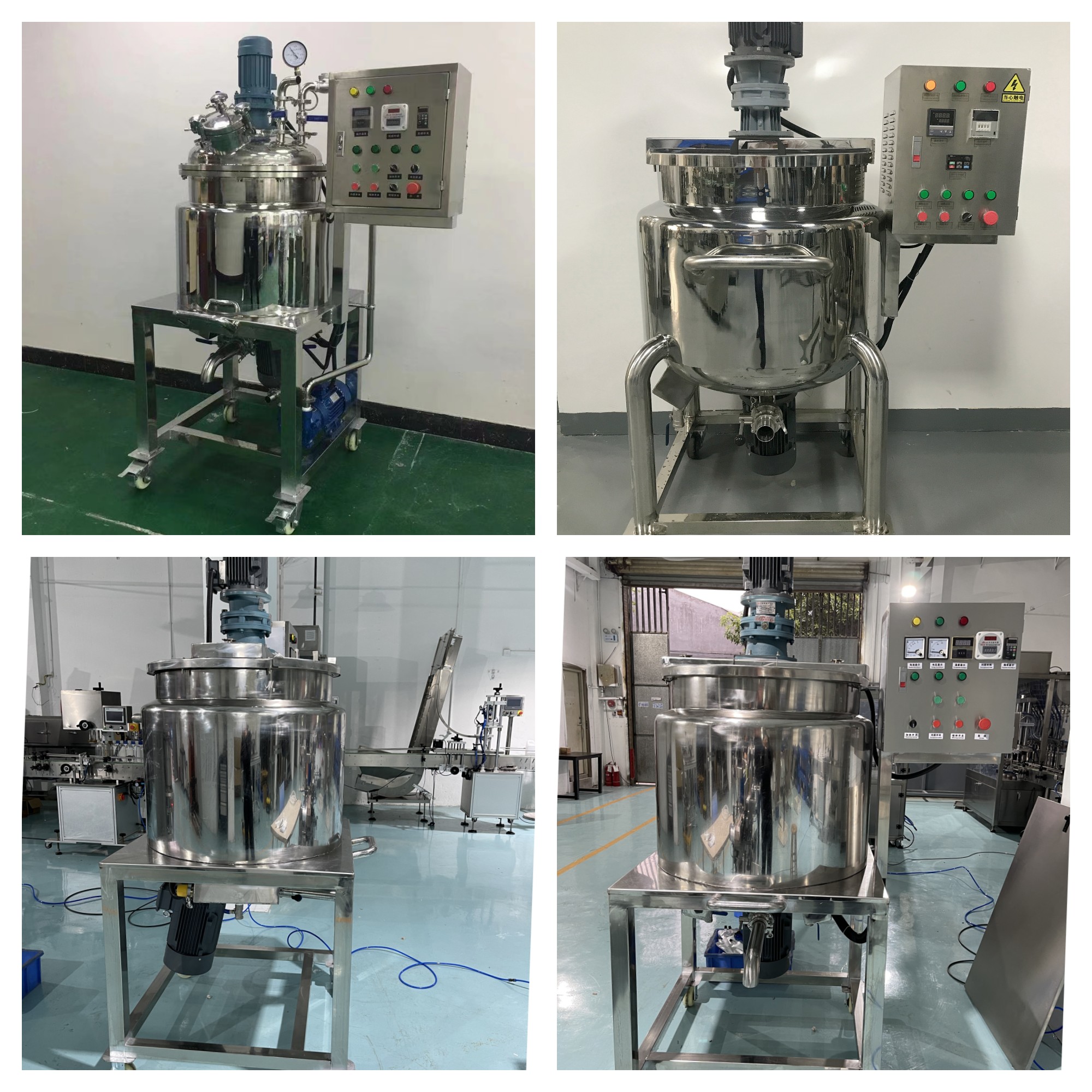

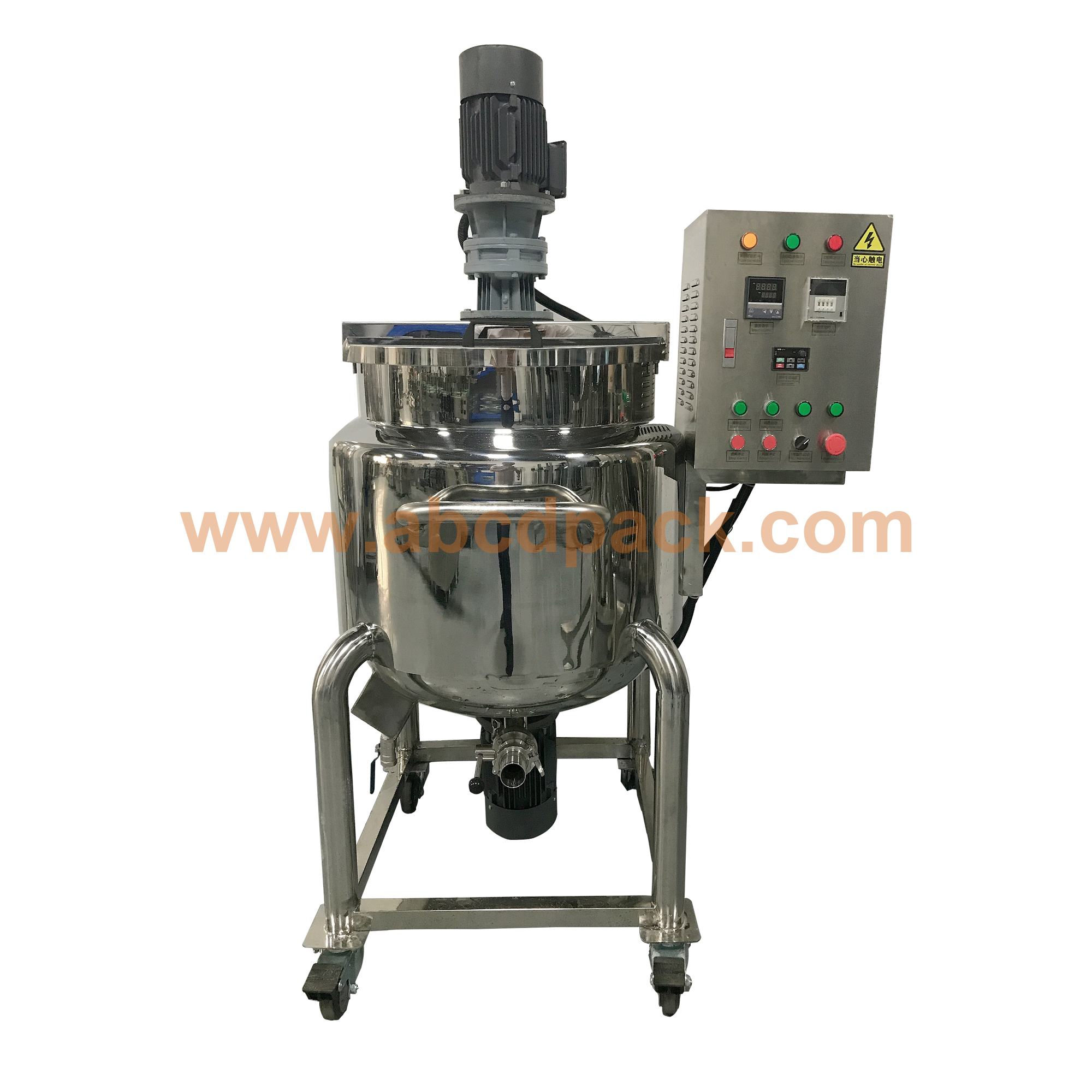

Product name:Electric heating homogeneous mixing tank
Model No:200L / 300L / 500L
Features:
Product Description 1.The material contact part is made of 316L stainless steel, which makes the product comply with GMP regulations. 2.The high-speed homogeneous emulsifier mixes and disperses the viscous strongly. Solids, liquids and materials can quickly dissolve AES, AESA, LSA and other insoluble materials in liquid washing production, saving energy and shortening the production cycle. 3.Wall-scraping stirring can meet the shape of the stirring tank at any time and clean the sticky material on the pot wall. 4.The surface of the pot and pipe is mirror polished. 5.The main stirring adopts frequency conversion speed change device, which can reduce the formation of bubbles when the temperature is low and the consistency is high. 6.The material can be heated or cooled according to the process requirements, and the heating method can be electric heating according to the customer's requirements. 7.Stainless steel electric control cabinet can comprehensively monitor the operation of the equipment, and can display data such as temperature and stirring speed.

Product specifications

Main parameters of the machine

Data sheets

Details

Name

Electric heating homogeneous mixing tank

Volume

Ull volume: 290L; Working volume: 290L

Interlayer pressure

normal pressure

Heating method

Jacket 18KW electric heating (9KW*2)

Cooling method

Jacketed tap water circulation cooling

Support method

Stainless steel hanging lugs, the height of the support point from the feeding port is 700mm

Unloading method

Bottom 2 inch sanitary butterfly valve with elbow side discharge

Support method

Stainless steel hanging lugs, the height of the support point from the feeding port is 700mm
