Main parameters of the machines
Data sheets
Dateils
Model detail

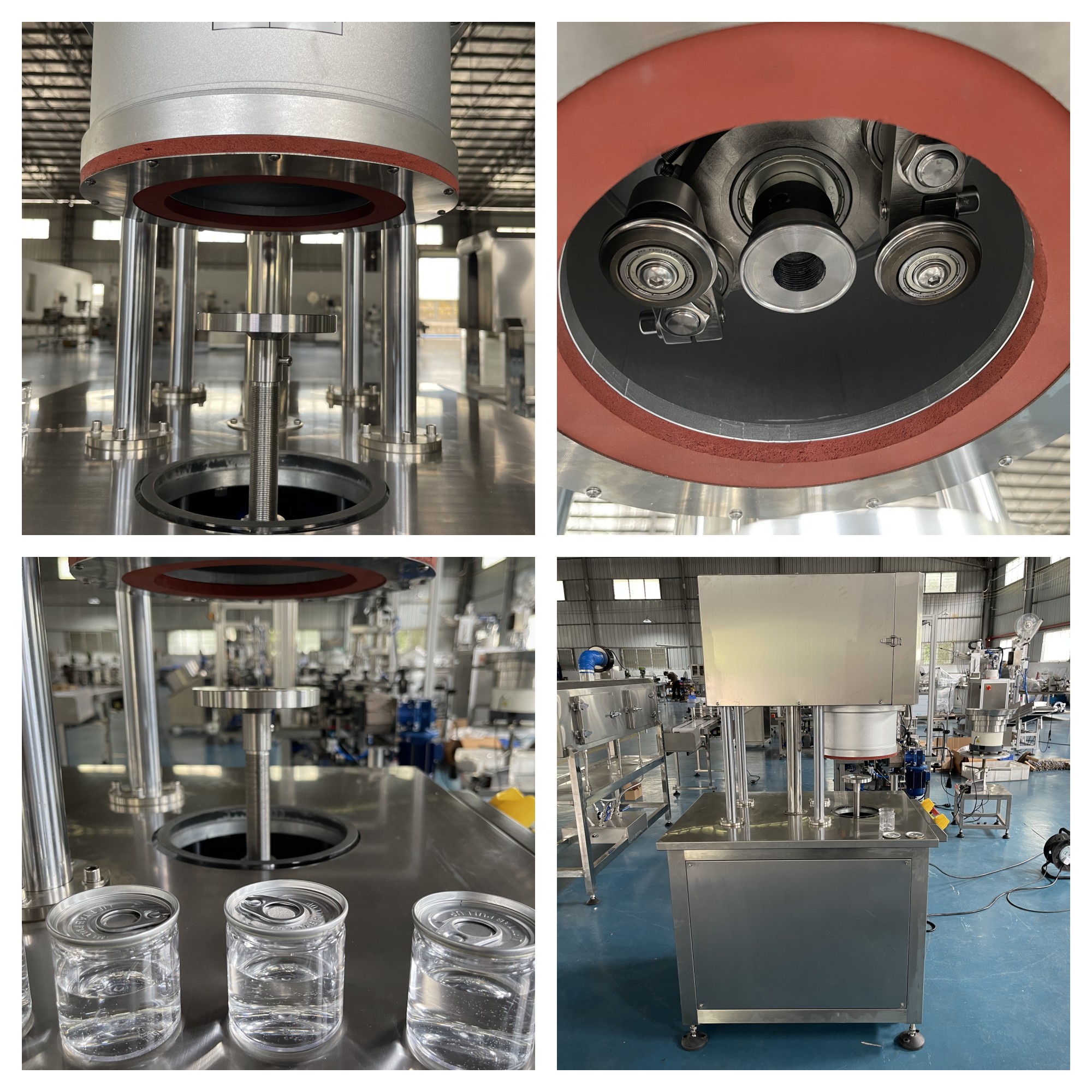

ADFG-3 Semi automatic vacuum can seaming machine
Sealing speed
5-8cans/min
Can range
H50-200mm(Adjustable),
D50-150mm(customized)
Air source
0.4-.0.8Mpa
Power
2kw
Voltage
AC22V 50/60Hz (single phase)
Working temperature/humidity
0-45℃,5-85%
Vacuum
-20kpa to -75kpa
Control system
PLC+touch screen
Oversize(L*W*H)
1500*800*1500cm
Packing size
1140*950*1820mm
Gross weight
300KG
Net weight
200KG
