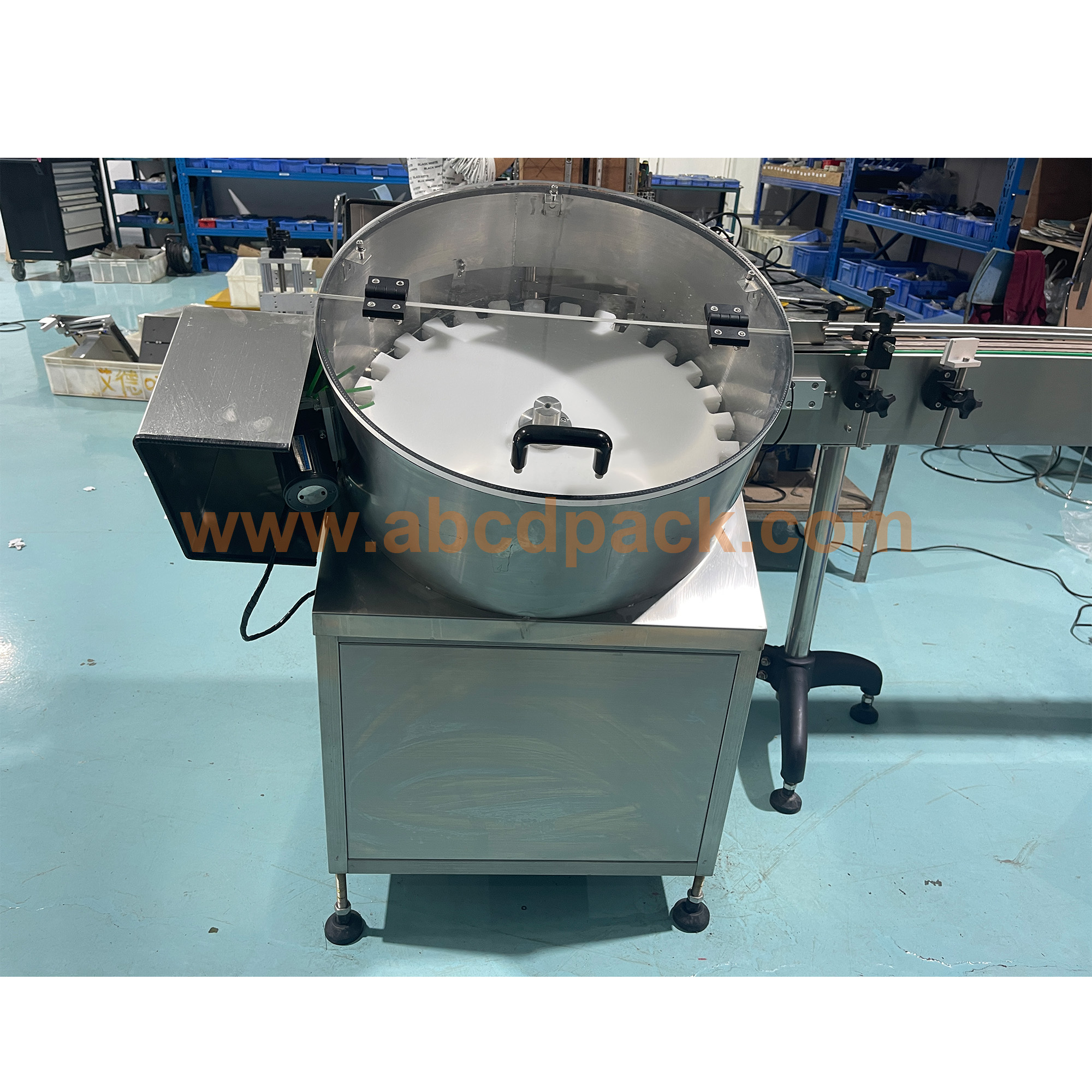

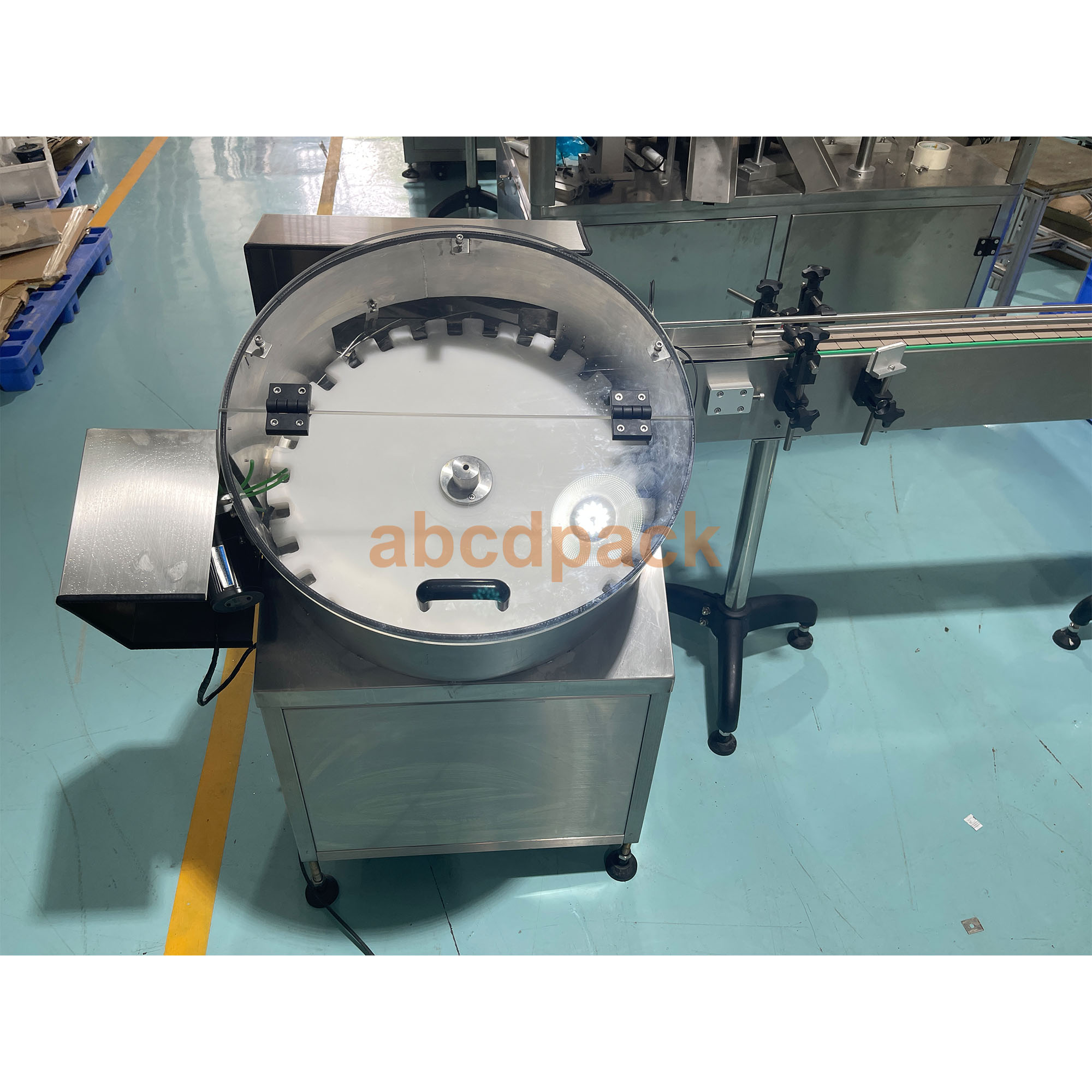

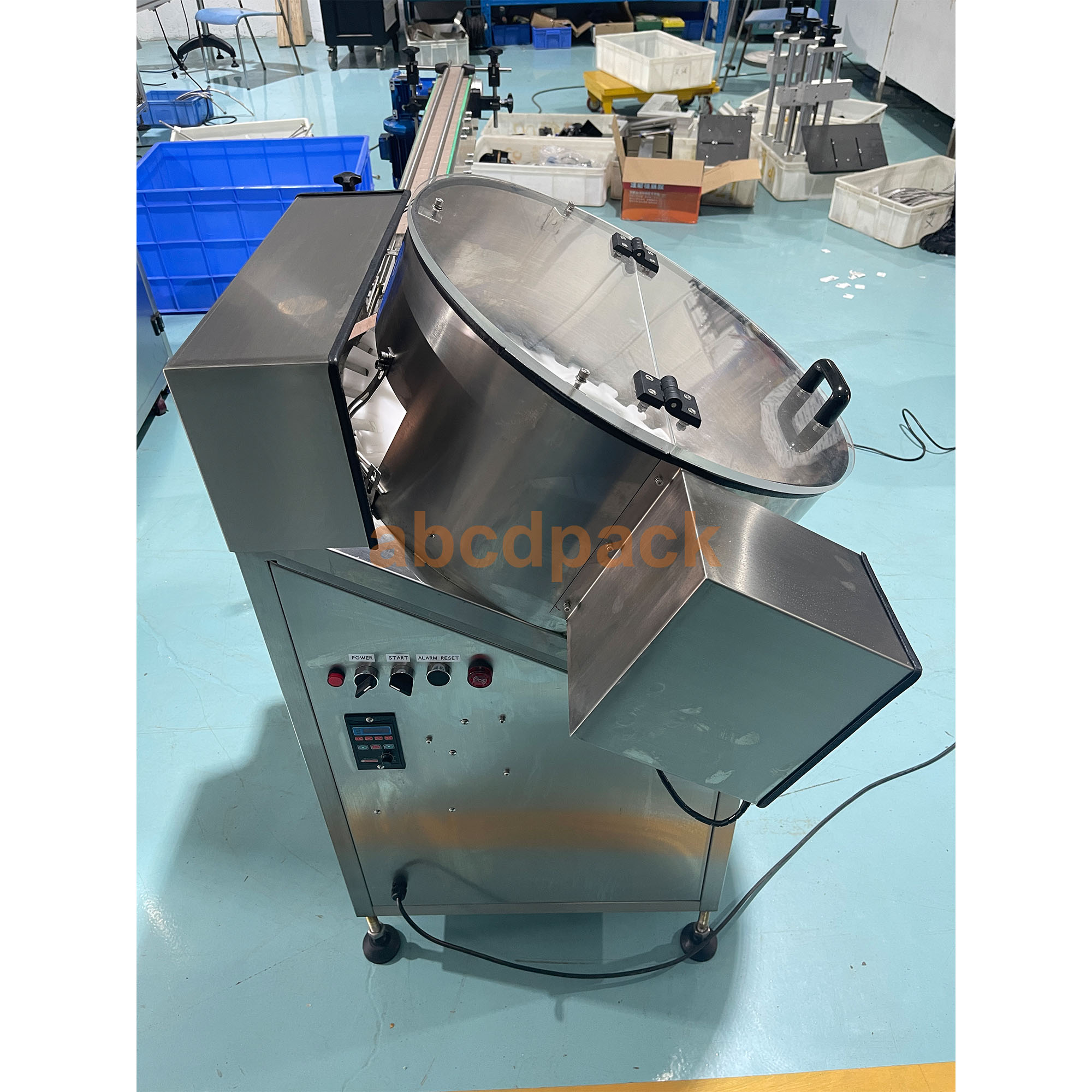

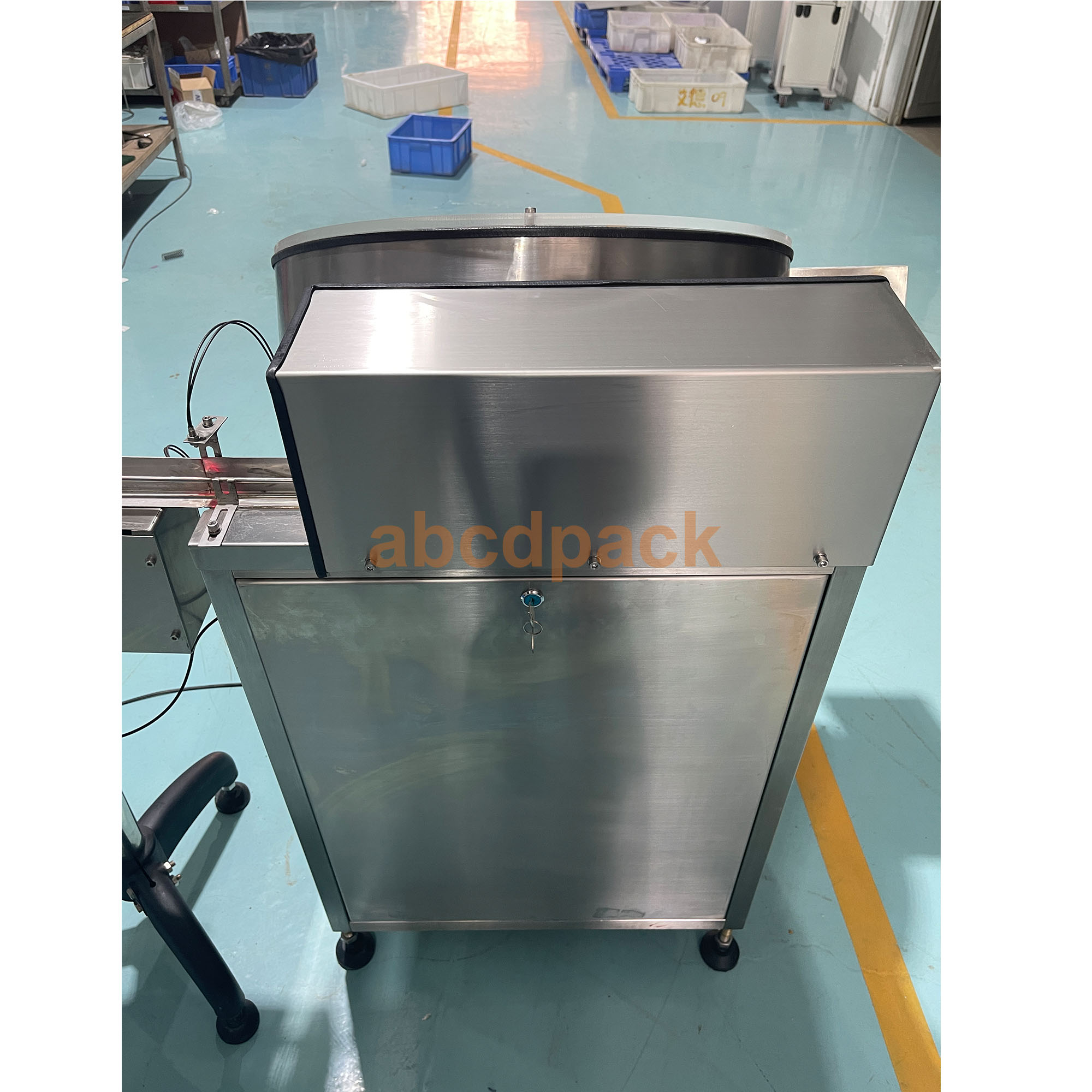

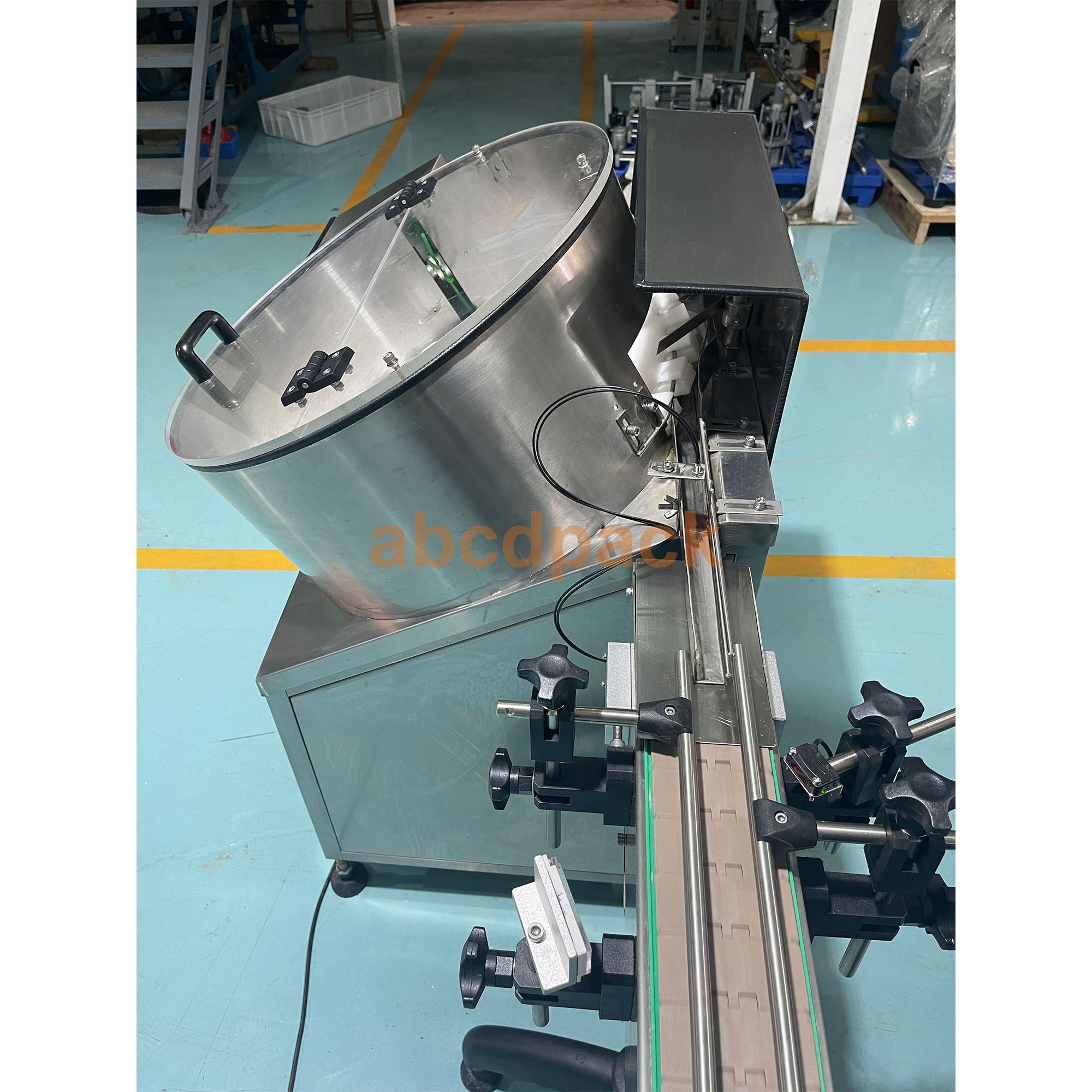

- Product name：Vial bottle unscrambler
- Model No：ALBG-50J
- Features：
Product Description 1. It is suitable for automatic transmission of round bottles, such as conveyor belt connected to labeling machine, filling machine and capping machine, automatic feeding, improving efficiency; can be applied to the intermediate connection of the assembly line as a buffer platform. Reduce the length of the conveyor belt. 2. The applicable bottle range can be adjusted freely. The bottle conveying speed is 30~100 bottles/min, and the speed can be adjusted steplessly to facilitate production arrangement.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
ALBG-50 Vial bottle unscrambler
Sorting speed
30~100pcs/minute
Applicable bottle
Φ20mm≤D≤Φ100mm
Applicable bottle height size
20mm≤H≤150mm
Power
200W
Voltage
AC220V, single phase, 50/60HZ
Working pressure
need compressed air: 0.5~0.6Mpa
Oversize (L*W*H)
1250*850*1250mm
Net weight
100kgs
