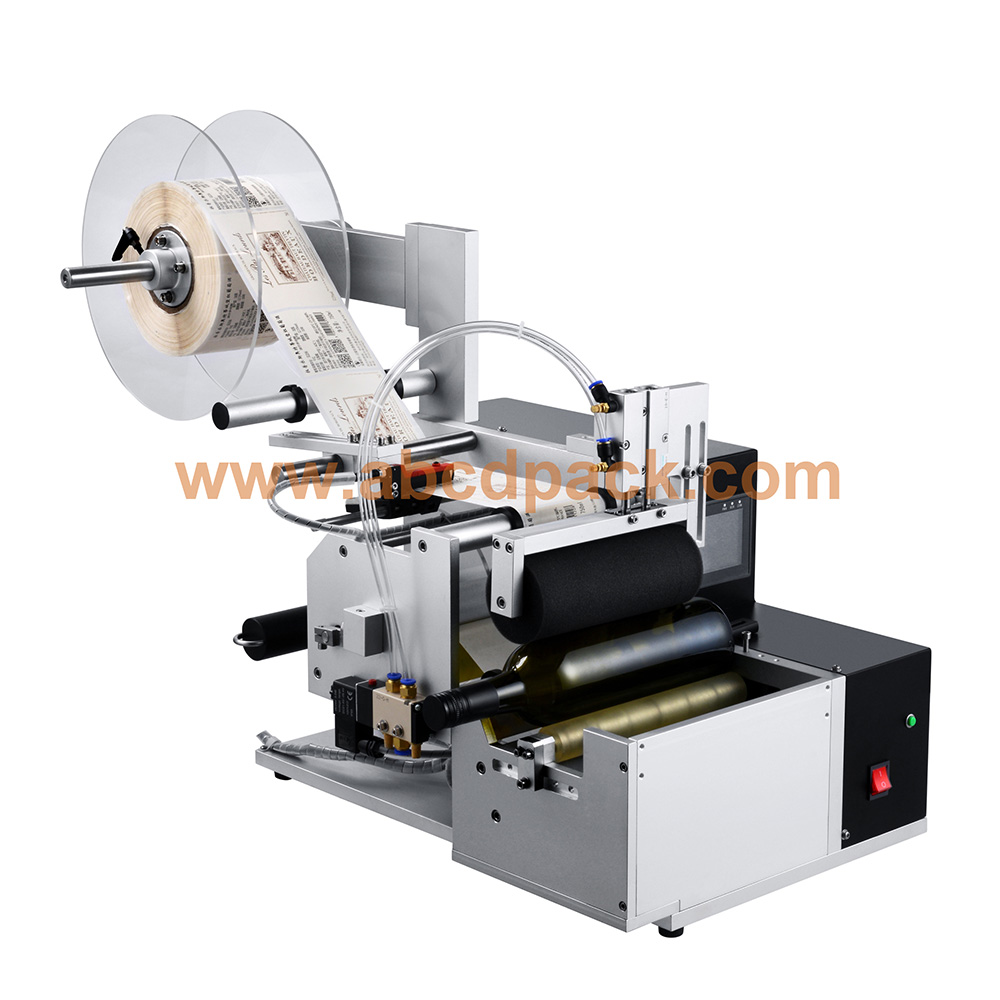

- Product name：Semi-auto wine bottle labeling machine
- Model No：AL-1130RH
- Features：
Product Description 1. Applicable labels: self-adhesive labels, self-adhesive films 2. Applicable products: Products that require labeling on the circumferential surface and conical surface; can be labeled with single label or double label; 3. Application industry: widely used in food, medicine, daily chemicals, electronics, hardware, plastics and other industries; 4. Application examples: oral liquid round bottle labeling, vial labeling, xylitol bottle labeling, shampoo bottle labeling, wine double labeling, wine spotting labeling, PET bottle manual labeling machine, etc.
Product specifications
Main parameters of the machine
Data sheets
Details
Name and model
AL-1130RH Semi-automatic standard machine
Labeling speed(max)
15pcs/min
Label length
10-300mm
Label width(max)
10-130mm
Diameter of bottle(max)
20mm～110mm
Outside diameter of label roll(max)
Φ300mm
Inside diameter of label roll(max)
Φ76mm
Accuracy of labeling
±1mm
Overall size(L*W*H)
650*500*500mm
Weight
50kgs
Compressed air
0.5～0.6Mpa
