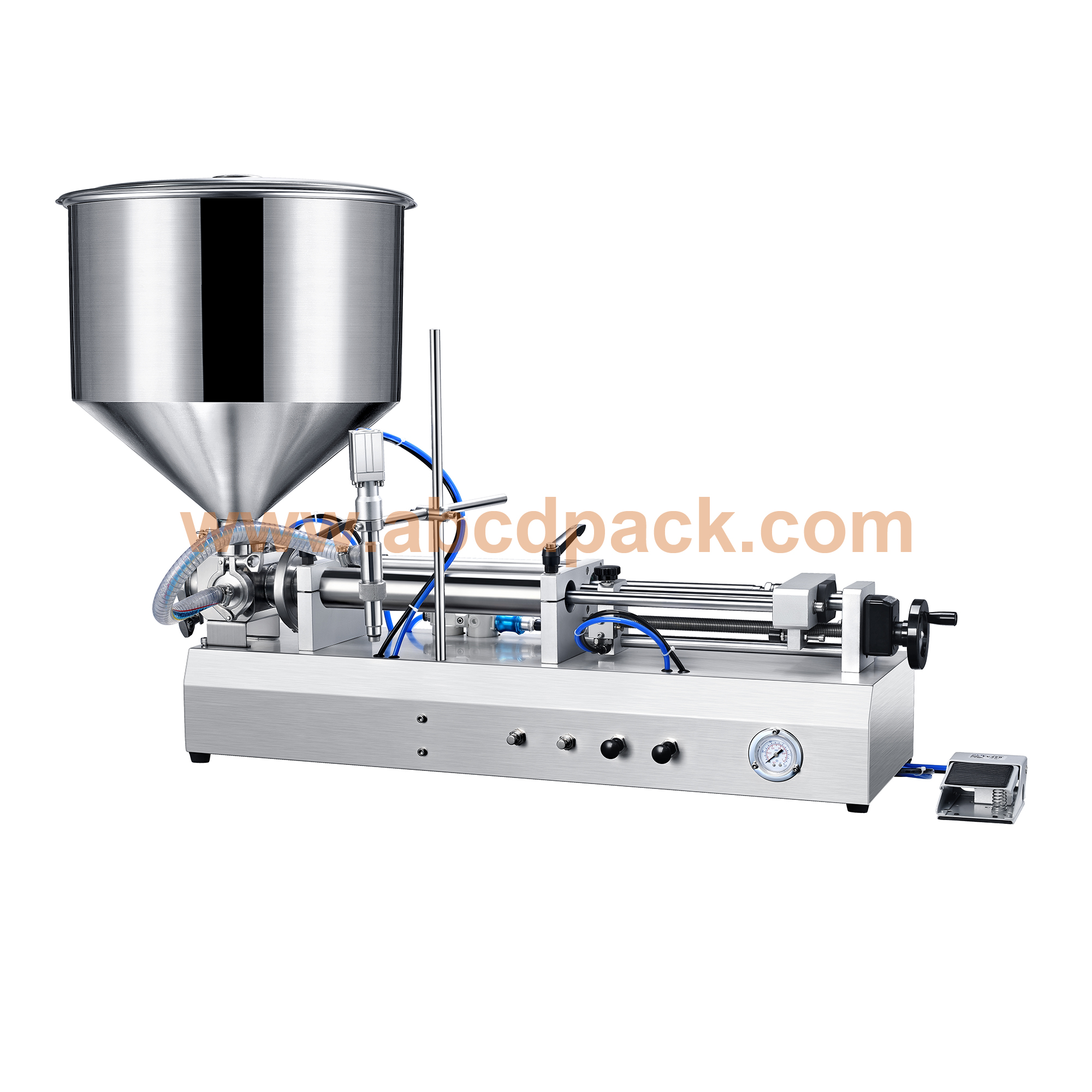

- Product name：Semi automatic cream filling machines
- Model No：ADF-1-500K/1000K
- Features：
Product Description 1. High filling accuracy 2. Adopting SUS304 or SUS316L stainless steel 3. Fully pneumatic control 4. Easy operation easy cleaning 5. Ideal for pastes and liquid filling with a certain viscosity
Product specifications
Main parameters of the machine
|
Data sheets |
Dateils |
|
|
Model detail |
ADF-1-500K |
ADF-1-1000K |
|
Filling volume |
100-500ml |
100-1000ml |
|
Filling Speed （B/min） |
0-40 |
0-40 |
|
Accuracy |
1% |
1% |
|
Net weight |
28kg |
31kg |
|
Gross weight |
45kg |
48kg |
|
Volume weight |
95kgs |
95kgs |
|
Oversize (mm) (L*W*H) |
1100*760*670 |
1100*760*670 |
|
Required air |
0.55Mpa~0.65Mpa |
|
