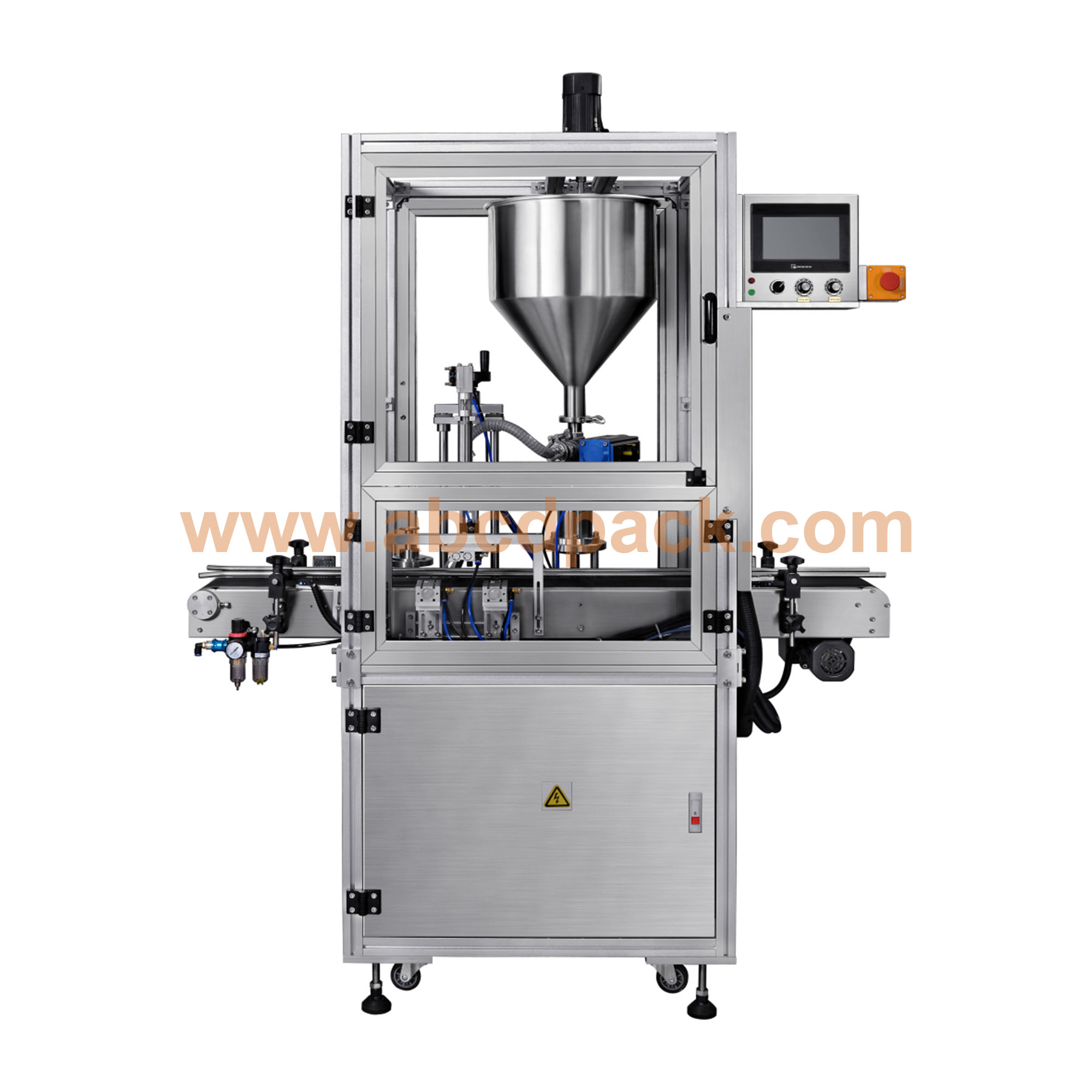

- Product name：Jar filler
- Model No：AXGZ-SG-1B
- Features：
The AXGZ-SG-1B filling machine is easy to fill and adjust. It can fill liquid and paste with a certain viscosity. The filling dose can be directly adjusted in the touch screen, and the adjustment is convenient and the adaptability is good. The cylinder can be changed to achieve high-precision filling of various filling quantities.
Product specifications
Main
Technical Parameters
Data sheets
Details
Name and model
AXGZ-SG-1B Computer piston filling machine
Max filling speed
filling 200ml, 500~900pcs/hour, speed will be different when bottle shape and neck size and the filling material forming and other physical property
Applicable bottle diameter size
Φ20≤D≤Φ100mm
Applicable bottle height size
30≤H≤200mm
Filling accuracy
±1%
Filling dose
100~1000ml
Voltage
AC220V, single phase, 50/60HZ
Power
500W
Working pressure
0.6MP
Air consumption
1200L one hour
Net/gross weight
100/150Kgs
Machine size(L*W*H)
1500*800*1800mm
Machine direction
from left to right
Operation process
put products on conveyer—>Block bottles—> sensor count the empty bottles—> 1 bottle come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles
